Advantages of Ultrasonic Testing (UT) in NDT Training
In the realm of non-destructive testing (NDT) techniques, ultrasonic testing (UT) stands out as a method that offers numerous advantages for NDT professionals. For those undergoing training in NDT courses, understanding the benefits of ultrasonic testing, along with its equipment and operational principles, can be instrumental in mastering this innovative technique.
Precision and Consistency
One of the standout advantages of ultrasonic testing is its unparalleled precision and consistency. UT relies on the propagation of high-frequency sound waves (typically between 0.5 MHz to 25 MHz) through a material to detect internal defects. This allows for precise control over the testing process, ensuring accurate detection and sizing of defects within materials with dimensions as small as a fraction of a millimetre.
No Damage to Test Parts
In ultrasonic testing, high-frequency sound waves are utilised to inspect the internal structure of test parts without causing damage. Unlike destructive testing methods, UT preserves the integrity of the test parts being examined, making it ideal for inspecting critical components and materials. This non-destructive nature is achieved by using low-energy sound waves that propagate through the material, reflecting off interfaces and defects, and returning to the transducer for analysis.
Ultrasonic Testing Equipment and Transducers

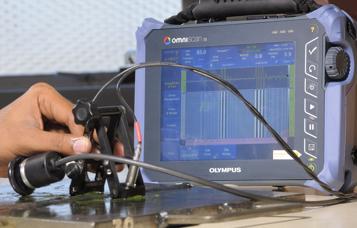

Ultrasonic testing equipment typically consists of a pulser/receiver, a transducer, a couplant, and a display unit. The pulser/receiver generates high-voltage electrical pulses that excite the transducer, converting electrical energy into mechanical vibrations. These vibrations are then transmitted into the test material through the couplant, which ensures efficient coupling between the transducer and the material under inspection.
The transducer, often made of piezoelectric crystals or ceramics, emits ultrasonic waves into the material and detects the echoes reflected back from internal defects. The display unit processes these echoes, displaying them as a visual representation known as an A-scan or B-scan, allowing inspectors to identify and analyse any anomalies present within the material.
High Sensitivity and Resolution
Ultrasonic testing offers high sensitivity and resolution, enabling inspectors to detect and characterise defects with exceptional accuracy. This capability is achieved by optimising various parameters such as frequency, gain, and probe design to maximise signal-to-noise ratio and enhance defect visibility. UT can detect a wide range of defects, including cracks, inclusions, voids, and delaminations, with sizes ranging from submillimetre to several centimetres.
Fast and Efficient
Speed is another hallmark of ultrasonic testing. The rapid nature of this method makes it highly efficient for inspecting large volumes of material in a relatively short amount of time. Automated UT systems further enhance efficiency by enabling high-speed scanning of complex geometries and large structures, reducing inspection time and minimising human error.
Versatility
Ultrasonic testing boasts remarkable versatility, capable of inspecting a wide array of materials, including metals, plastics, ceramics, and composites. This versatility makes it a preferred choice for diverse applications across industries ranging from manufacturing and construction to aerospace and oil and gas. Additionally, UT techniques such as phased array ultrasonics (PAUT) and time-of-flight diffraction (TOFD) further expand the capabilities of conventional UT by offering advanced imaging and defect characterisation capabilities.
Environmentally Friendly
With its non-destructive nature and minimal use of consumables, ultrasonic testing is considered environmentally friendly. This feature aligns well with the growing emphasis on sustainability and eco-consciousness in industrial practices. Additionally, UT generates minimal waste and does not produce harmful emissions, making it an environmentally responsible choice for material inspection and quality assurance.
In conclusion, mastering ultrasonic testing in an NDT training course equips candidates with a valuable skillset that encompasses precision, efficiency, versatility, and environmental consciousness. As industries continue to prioritise quality assurance and safety, the demand for skilled ultrasonic inspectors is expected to rise, making proficiency in this technique an invaluable asset for NDT professionals of the future.
